2500kw High Voltage Asynchronous Motors

2500kw High Voltage Asynchronous Motors

  • 2500kw High Voltage Asynchronous Motors
  • 2500kw High Voltage Asynchronous Motors
2500kw High Voltage Asynchronous Motors
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: THMotor
Orzecznictwo: CE
Model Number: T 7000
Zapłata:
Minimum Order Quantity: 1set
Cena: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Kontakt
Szczegółowy opis produktu
Product name: YRKK 2500kw Wound Rotor Induction Motor High-Voltage Asynchronous Motors Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling method: IC37,IC81W IP rate: IP44,IP54,IP55
Podkreślić:

2500kw Wound Rotor Induction Motor

,

2500kw High Voltage Asynchronous Motors

,

IP55 High Voltage Asynchronous Motors

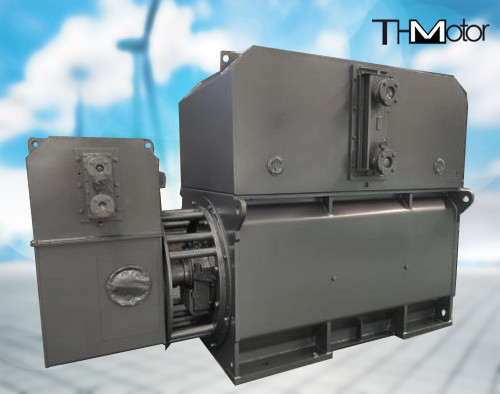

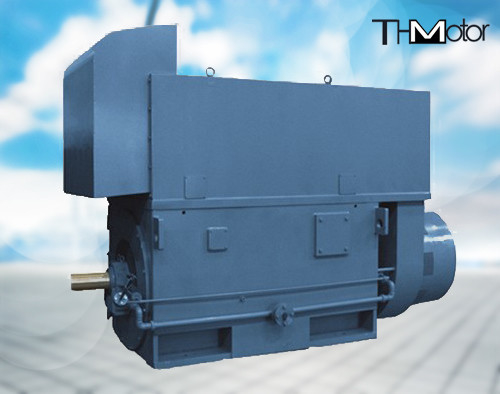

YRKK 2500kw Wound Rotor Induction Motor High-Voltage Asynchronous Motors



Product overview



The YRKK high-voltage motor stator adopts an external press-fitting structure, and the stator winding is made of F-class insulating material, and the ends are reliably fixed and bound. During the manufacturing process, it has undergone many inter-turn pulse voltage tests and ground withstand voltage tests, and adopts German advanced technology. The vacuum pressure impregnation solvent-free paint equipment and process (VPI) process. Therefore, the motor has excellent and reliable insulation performance, good mechanical strength and strong moisture resistance.



YRKK high-voltage motor winding rotor adopts F-class insulation material. There are two types of bearings: rolling bearings and sliding bearings, depending on the power and speed of the motor. YR series is the basic series, and the protection level is IP54. YRQF series (IPW24) and YRKS series (IP44 or IP54) can also be derived according to the ordering requirements.
The main junction box is generally installed on the right side of the motor (viewed from the shaft extension end), and can also be installed on the left side of the motor according to the ordering requirements. There is a separate ground terminal in the main junction box.



YRKK high-voltage motors can be used to drive various general machinery such as compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, as prime movers in mining, machinery industry, petrochemical industry, power plants and other industrial and mining enterprises use. Motors used to drive blowers, coal mills, rolling mills, and hoists should indicate their use and technical requirements when ordering, and adopt special designs to ensure reliable operation.



Product specifications



PRODUCT NAME: YRKK 2500kw Wound Rotor Induction Motor High-Voltage Asynchronous Motors POWER RANGE: 1000-12000kw
VOLTAGE: 3kv-11kv SPEED RANGE: 1000rpm-1500rpm
POLES: 4,6 FREQUENCY: 50hz,60hz
COOLING METHOD: IC37,IC81W IP RATE: IP44,IP54,IP55





Each series of motors

2500kw High Voltage Asynchronous Motors 0



Our aftersales service

2500kw High Voltage Asynchronous Motors 1



Product packaging

2500kw High Voltage Asynchronous Motors 2



Certifications

2500kw High Voltage Asynchronous Motors 3
