10KV 50Hz High Voltage Electric Motors For Blast Blower 3600rpm

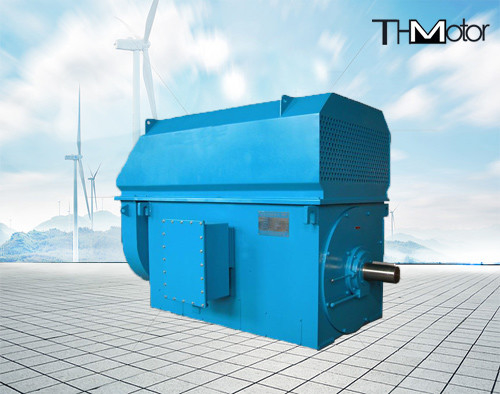

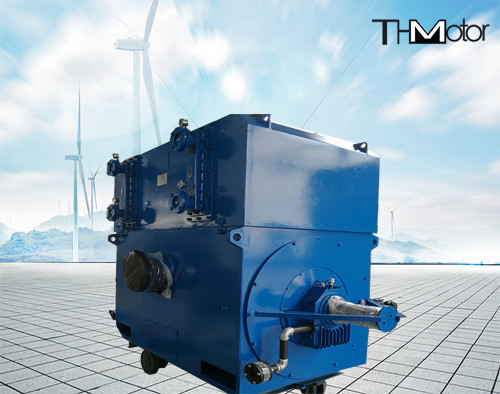

YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors For Blast Blower

This series of products adopts new technologies, new materials, new processes in the 1990s, sophisticated material selection, and sophisticated manufacturing. It has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, and convenient installation and maintenance.
This series of motors complies with the national standard GB755 "Rating and Performance of Rotating Electric Machines", the industry standard JB/T7593 "Technical Conditions for Y Series High Voltage Three-phase Asynchronous Motors (Frame No. 355-630)", JB/T10315.1 "YKS, YKS- W, YQF series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", JB/T10315.2 "YKK, YKK-W series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", The enterprise standard "10KV three-phase asynchronous motor (frame size 450-800) technical conditions" and IEC international standards, the mechanical dimensions and tolerances of each component meet the corresponding national standards and international standards.
Please specify the following when ordering:
(1) Motor model: YK5000-2/1430
(2) Rated frequency: 50Hz
(3) Rated power: 5000kw
(4) Rated voltage: 10kV
(5) Number of poles: 2 poles
(6) Cooling method: IC01
(7) Installation type: IM7212
(8) Protection class: IP23
(9) Rotation direction: clockwise (looking at the shaft extension end of the motor)
(10) Outlet box location: right side of the motor (looking at the shaft extension end of the motor)
(11) Space heaters and temperature measuring elements should be installed.
