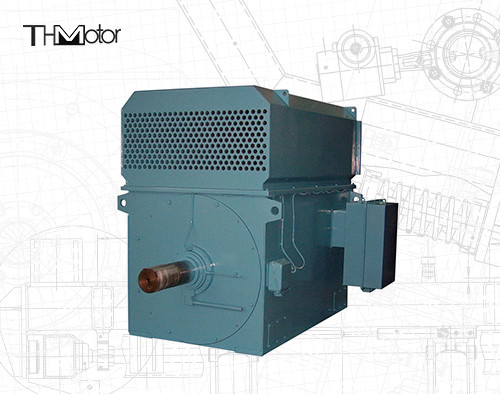

CE YR500-4 High Torque Wound Rotor Induction Motor IC611

CE YR500-4 High Torque Wound Rotor Induction Motor IC611

CE YR500-4 High Torque Wound Rotor Induction Motor IC611
CE YR500-4 High Torque Wound Rotor Induction Motor IC611
CE YR500-4 High Torque Wound Rotor Induction Motor IC611
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: THMotor
Orzecznictwo: CE
Model Number: Y800-4
Zapłata:
Minimum Order Quantity: 1set
Cena: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Kontakt
Szczegółowy opis produktu
Product name: Yr500-4 High Torque Electric Motor Wound Rotor Induction Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Podkreślić:

YR500-4 Wound Rotor Induction Motor

,

YR500-4 High Torque Electric Motor

,

High Torque Electric Motor IC611

YR500-4 High Torque Electric Motor Wound Rotor Induction Motor



Product overview



YR series low-voltage-high-voltage motors are wound asynchronous high-efficiency energy-saving motors with natural ventilation cooling. YR series 6kv, 10kv high-voltage three-phase asynchronous motors are wound-type (slip ring) three-phase asynchronous motors. The protection grade of this motor is IP23 (see GB/T4942.1), and the cooling method is IC01 (GB/T1993). The motor has the advantages of high efficiency, energy saving, low noise, small vibration, reliable performance, convenient installation and maintenance, etc. This series of motors can be used to drive a variety of different machinery. Such as fans, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises.



Product specifications



power 100-10000kw
frame size IEC 355-10000
poles 2-16
rate voltage 380-11000v
frequency 50hz;60hz
IP Rate
Cooling		 IP23
IC01
material iron
motor type YR
IMB 水平
Standard IEC, DNV, GB

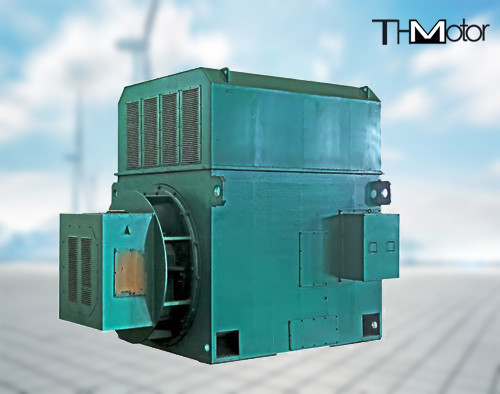

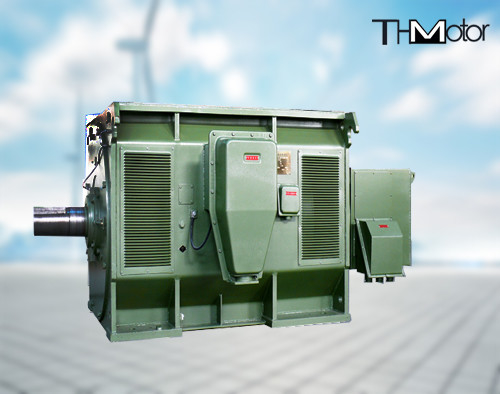

Each series of motors

CE YR500-4 High Torque Wound Rotor Induction Motor IC611 0



Our aftersales service

CE YR500-4 High Torque Wound Rotor Induction Motor IC611 1



Product packaging

CE YR500-4 High Torque Wound Rotor Induction Motor IC611 2



Certifications

CE YR500-4 High Torque Wound Rotor Induction Motor IC611 3
