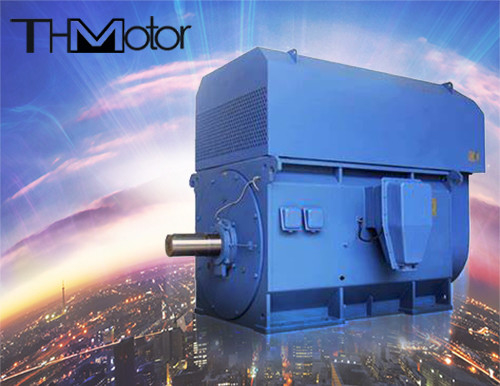

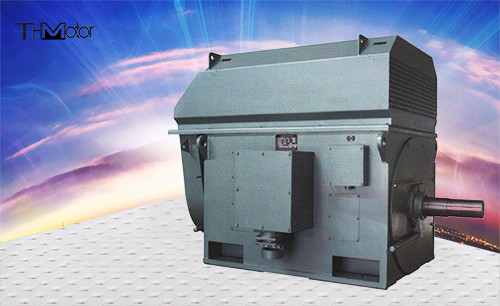

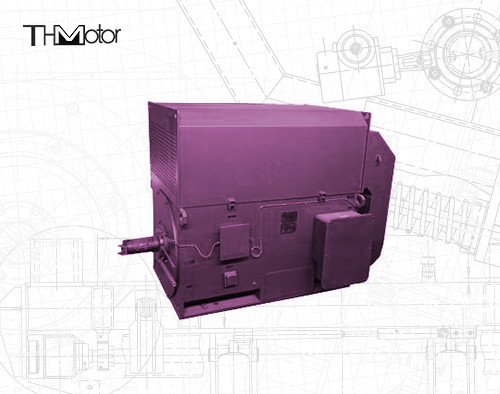

YKK710 YKK630 YKK800 400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage

YKK710 YKK630 YKK800 400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage

  • YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage
  • YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage
  • YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage
YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: THMotor
Orzecznictwo: CE
Model Number: YKK-500/1250KW
Zapłata:
Minimum Order Quantity: 1set
Cena: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Kontakt
Szczegółowy opis produktu
Product name: Ykk Ac Electric Motor High Voltage Ac Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Podkreślić:

YKK710 AC Electric Motor

,

YKK630 Squirrel Cage Motors S1

,

YKK800 Squirrel Cage Motors

Ykk Ac Electric Motor High Voltage Ac Motor



Product overview



This series of medium-sized high-voltage motors has the advantages of high efficiency and energy saving, low noise, small vibration, reliable operation, and convenient installation and maintenance. YKK series high-voltage motors are suitable for driving various general electrical machinery such as fans, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other equipment, in mining, machinery industry, petrochemical industry, power plants and other industries The motor used as prime mover to drive blower, coal mill, rolling mill and hoist should indicate the purpose and technical requirements when ordering, and adopt special design to ensure the reliable operation of the motor..



Conditions of Use:

Voltage: 3KV-13.8KV
Power: 200KW~3150KW
Number of poles: 2-12
Protection class: IP44/IP55
Insulation/temperature rise class: F/B, H/B
Altitude: no more than 1000m
Frequency: 50Hz
Working system: continuous working system (S1)
Ambient temperature: -15℃~+40℃



Product specifications



Motor type/Model YKK630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
RPM 500/590/740/990/1500/3000 Efficiency 84-94.5%



Each series of motors

YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage 0



Our aftersales service

YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage 1



Product packaging

YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage 2



Certifications

YKK710 YKK630 YKK800  400kw to6000kw AC Electric Squirrel Cage Motors S1 High Voltage 3
