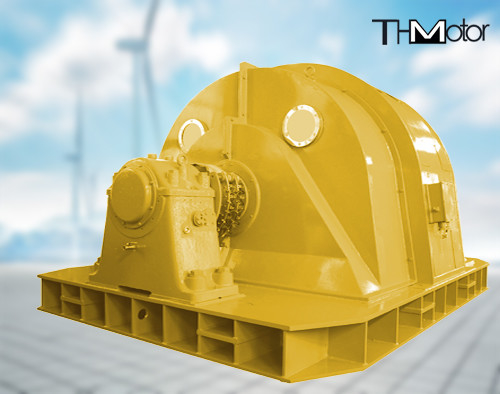

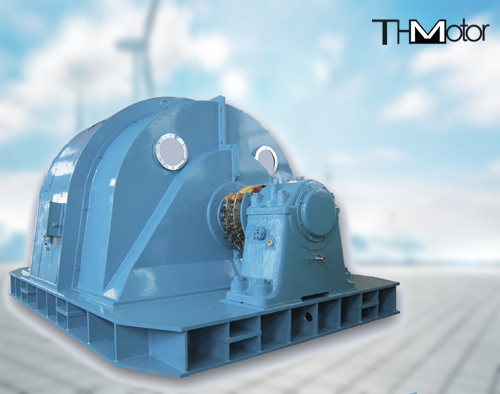

6000KW Large Synchronous Motor

6000KW Large Synchronous Motor

  • 6000KW Large Synchronous Motor
  • 6000KW Large Synchronous Motor
6000KW Large Synchronous Motor
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: THMotor
Orzecznictwo: CE
Model Number: TDMK400
Zapłata:
Minimum Order Quantity: 1set
Cena: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Kontakt
Szczegółowy opis produktu
Product name: TDG 6000KW Large Scale Synchronous Motor For Blust Blower Steel Plant Power Range: 400-15000kw
Voltage: 6kv Speed range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min
Poles: 60, 48, 40, 36, 32, 30, 24, 20 Frequency: 50hz,60hz
Cooling method: IC01,IC37,IC81W IP rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55
Standard: IEC,GB
Podkreślić:

TDG Large Synchronous Motor

,

TDG Blast Blower Steel Plant Motor

,

6000KW Large Synchronous Motor

TDG 6000KW Large Scale Synchronous Motor For Blust Blower Steel Plant

Product overview

Motor cooling methods for IC91W or IC81W, motor with air-water cooler, the installation type is IM7311 or IM1001, enclosure protection class IP44.Motor rotor for salient form, pole for the whole steel structure, high strength alloy steel bolt for pole and polar to ensure good contact and
can withstand mechanical stress generated during high-speed runs.
Technical data of TDG series high-power synchronous motor (6kV)
Asynchronous starting: when the starting mode is used, it must be voltage-reduced starting. When starting, make sure that the motor Terminal voltage between 0.6~0.7 times the rated voltage. Motor must match dedicated to the excitation devices, ensure the equipment investment and shunt excitation current strongly excited when at least 1.8 times the rated current of a multiple times.
Frequency-converted starting: when electric power is greater than 7000kW, the recommended frequency-converted starting and matching the corresponding private digital excitation devices. When the load inertia is unable to meet the technical requirements of the electric motor asynchronous starting, you must use frequencyconverted starting and matching the corresponding private digital excitation devices.
When motor adopts frequency-converted starting method, motor starting time must not be greater than 150 seconds

Product specifications



kW


A


EFF
%

Ist
/In

Tm
/Tn

Mst
/Mn


Tp /Tn


(Jext)kg.m2


V


A


IM

200022296.26.52.011.851.44250562527311.01
275030496.75.51.781.61.166500592767311.02
330036496.95.841.751.711.249700662681001.02
3500386976.461.811.891.3710500692627311.05
3600397976.281.791.841.3310300692677311.05
400044096.56.181.921.661.2710500782587311.07
420046296.55.881.871.581.2111250802667311.07
430047496.55.741.851.541.1812500812697311.07
460050696.55.371.791.441.1114200842807311.07
500054997.36.71.961.741.3913500912687311.08
530058297.36.331.911.641.3113500942777311.08
660072597.45.581.711.541.21162501093447311.09
690075897.35.341.681.471.16170001133567311.09
740081297.455.801.701.611.26170001203447311.11
780085597.55.511.661.521.2/1243577311.11


Each series of motors
6000KW Large Synchronous Motor 0

Our aftersales service
6000KW Large Synchronous Motor 1

Product packaging
6000KW Large Synchronous Motor 2

Certifications
6000KW Large Synchronous Motor 3
