TL Vertical Water Conservancy Large Synchronous Motor 10kv

TL Vertical Water Conservancy Large Synchronous Motor 10kv

  • TL Vertical Water Conservancy Large Synchronous Motor 10kv
  • TL Vertical Water Conservancy Large Synchronous Motor 10kv
TL Vertical Water Conservancy Large Synchronous Motor 10kv
Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: THMotor
Orzecznictwo: CE
Model Number: TL1600
Zapłata:
Minimum Order Quantity: 1set
Cena: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Kontakt
Szczegółowy opis produktu
Power Range: 500-15000kw Voltage: 6kv-10kv
Speed range: 375,333,300, 250, 214, 188, 167, 150, 136, 125r/min Frequency: 50hz,60hz
Cooling method: IC37,IC81W IP rate: IP44,IP54,IP23
Standard: ICE,GB
Podkreślić:

TL Vertical Large Synchronous Motor

,

TL Vertical Water Conservancy Motor

,

Water Conservancy Motor 10kv

TL Vertical Large Synchronous Motor For Water Conservancy Motor For Water Pump



POWER RANGE: 500-15000kw VOLTAGE: 6kv-10kv
SPEED RANGE: 375,333,300, 250, 214, 188, 167, 150, 136, 125r/min FREQUENCY: 50hz,60hz
COOLING METHOD: IC37,IC81W IP RATE: IP44,IP54,IP23
STANDARD: ICE,GB



TL series synchronous motors are generally of a vertical suspension structure. The stator core is laminated with low-loss cold-rolled silicon steel plates. The stator windings are impregnated with F-class VPI solvent-free paint under vacuum pressure, so that the stator has good insulation performance and reliable performance. Mechanical strength, can withstand the impact of electromagnetic force when starting. The rotor is a salient pole structure, the magnetic pole iron core is made of high-quality cold-rolled steel plates, and the full damping structure is adopted, so that the motor has good starting performance and damping ability.

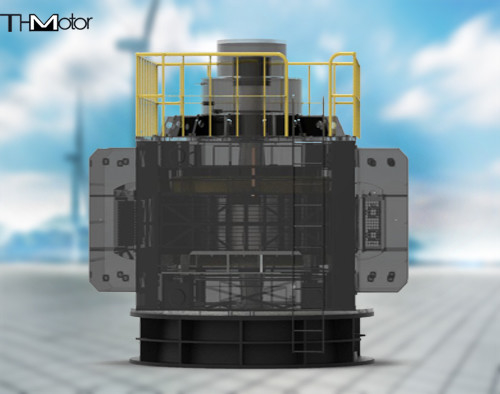

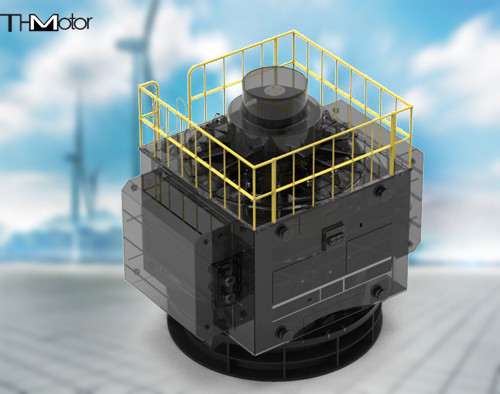

TL Vertical Water Conservancy Large Synchronous Motor 10kv 0TL Vertical Water Conservancy Large Synchronous Motor 10kv 1

TL Vertical Water Conservancy Large Synchronous Motor 10kv 2
